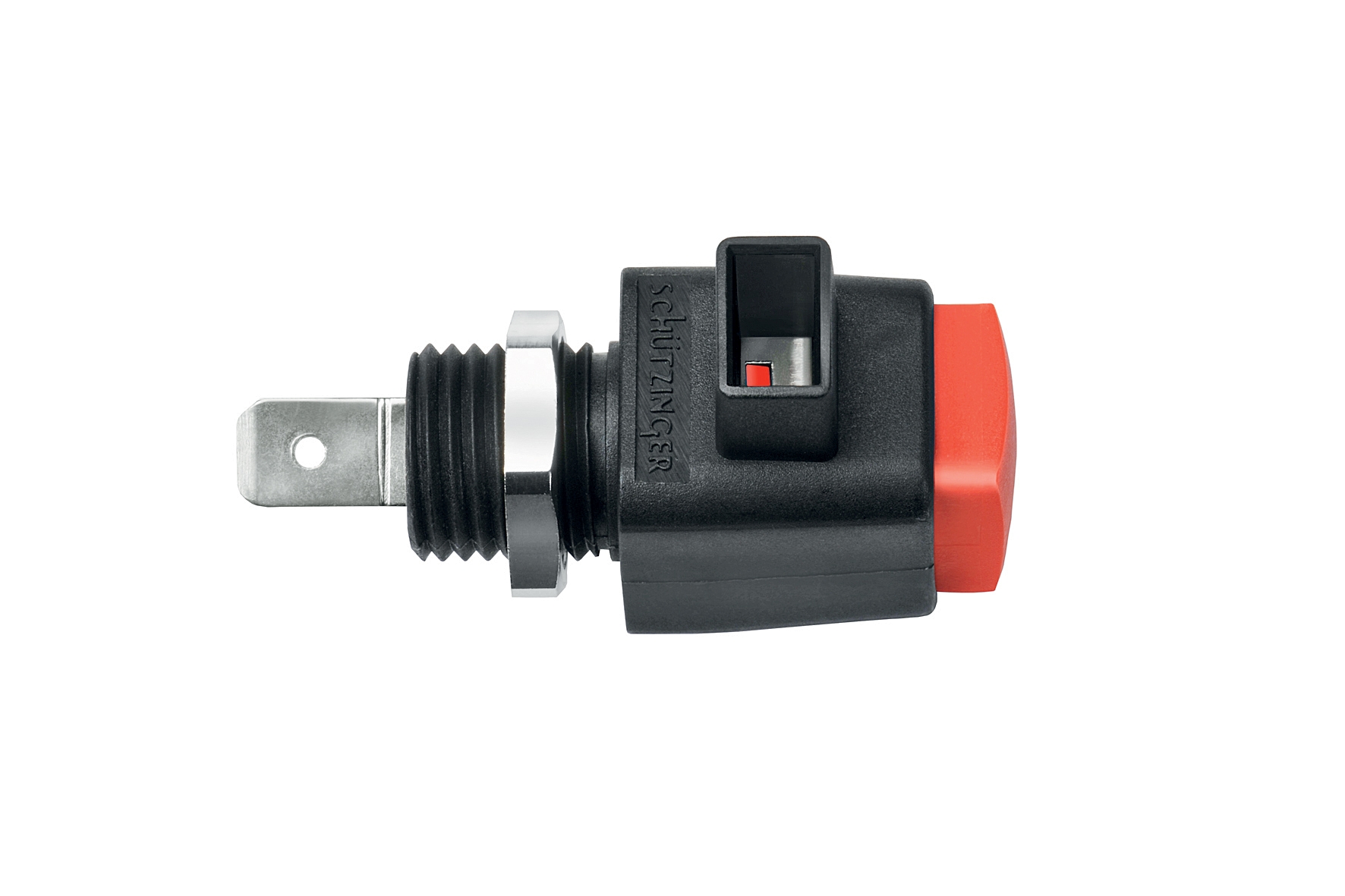

Safety Quick Release Terminal

    Fully Insulated
    Contact parts: Nickel Plated
    Insulation: PA 6.6 (Polyamid)
    Panel Thickness 0.8 mm - 7 mm

Technical Data

•     Max Torque for nuts: 85 Ncm
•     FSH 2.8 x 0.5 or soldering
•     Transistion Resistance <3 mΩ
•     Rated Voltage: 300 V Cat II
•     Rated Current: 16 A
•     Operating Temperature: -25°C - +90°C
