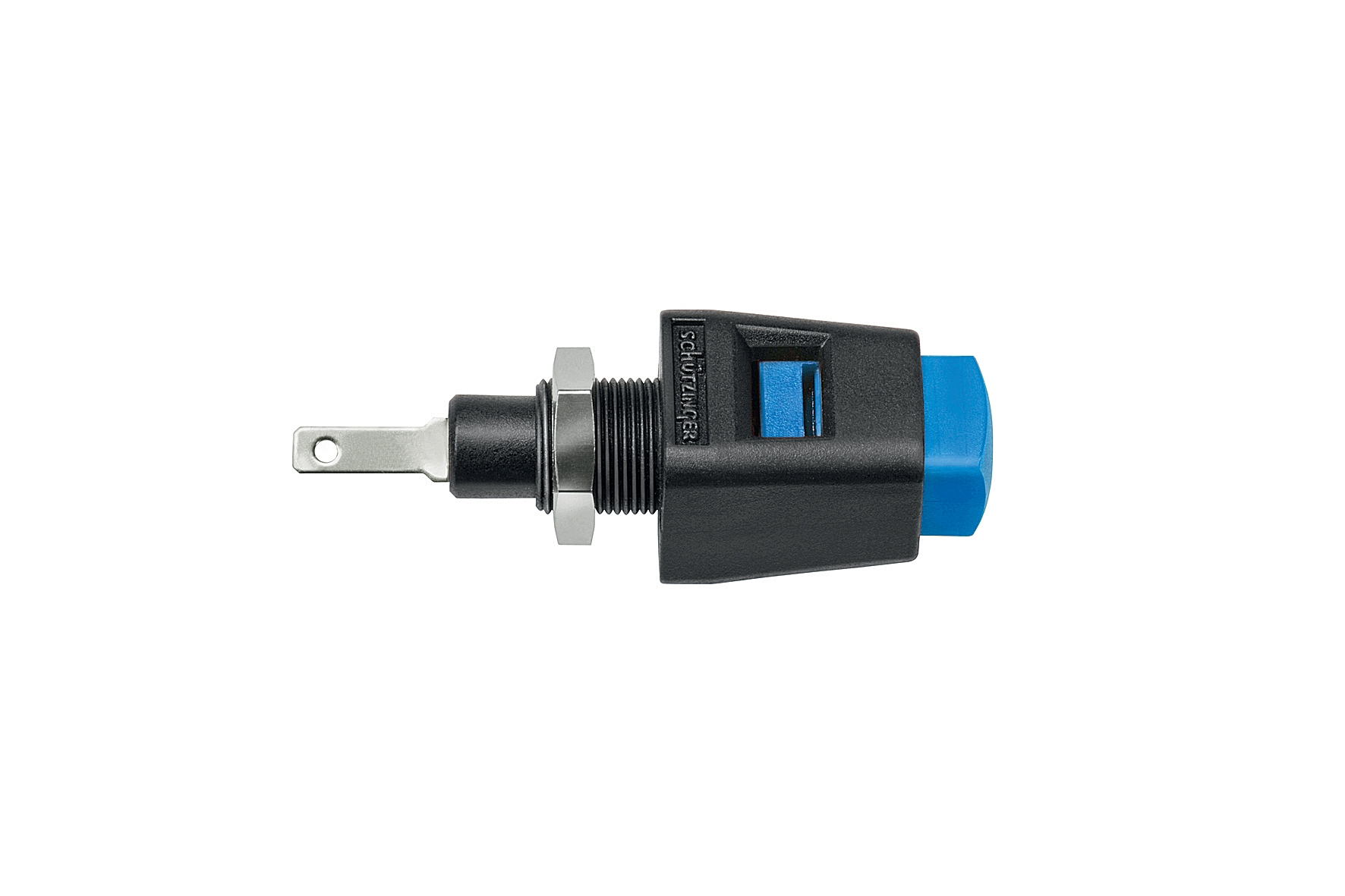

Safety Quick Release Terminal

    Fully Insulated for metal panels
    Contact parts: Nickel Plated
    Insulation: PA 6.6 (Polyamid)
    Panel Thickness 0.8 mm - 4 mm

Technical Data

•     Max Torque for nuts: 30 Ncm
•     FSH 2.8 x 0.5 or soldering
•     Transistion Resistance <5 mΩ
•     Rated Voltage: 33 VAC/70 VDC
•     Rated Current: 5 A
•     Operating Temperature: -25°C - +90°C
