Adjustment via remote control |
yes |
|
Ambient temperature |
-30 - 60°C |
|
Cable length |
10m |
|
Detection field length infrared |
3m |
|
Detection field width infrared |
3m |
|
For control of automatic doors and gates |
yes |
|
For mounting in installation socket |
no |
|
Height of sensor |
102mm |
|
Inclination |
15 - 45° |
|
Installation height |
2500 - 6000mm |
|
Length of sensor |
96mm |
|
Material housing |
Polycarbonate |
|
Max. output current |
1000mA |
|
Minimum Speed |
0.05m/s |
|

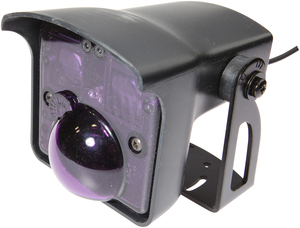

Model |
Presence detector |
|
Number of cores |
8 |
|
Number of switch outputs |
2 |
|
Operating voltage |
12 - 24V |
|
Optimum mounting height |
5m |
|
Output hold time |
0.5 - 0.5s |
|
Power consumption |
2W |
|
Reverse polarity protection |
no |
|
Setting procedure |
Parameterization |
|
Short-circuit-proof |
no |
|
Suitable for degree of protection (IP) |
IP65 |
|
Switching voltage |
42V |
|
Time of reaction |
250ms |
|
Turn-off delay |
yes |
|
Type of electric connection |
Cable |
|
Type of light |
Infrared light |
|
Type of switch function |
Change-over contact |
|
Type of switching output |
Relay contact |
|
Voltage type |
AC/DC |
|
Wavelength of the sensor |
875nm |
|
Width sensor |
127mm |
|
With LED indication |
yes |
