Adjustment via remote control |
yes |
|
Ambient temperature |
-25 - 55°C |
|
Cable length |
10m |
|
Detection field length infrared |
0.6m |
|
Detection field width infrared |
3m |
|
For control of automatic doors and gates |
yes |
|
For mounting in installation socket |
no |
|
Height of sensor |
58mm |
|
Inclination |
-7 - 4° |
|
Installation height |
2000 - 4000mm |
|
Length of sensor |
57mm |
|
Material housing |
Plastic |
|
Max. output current |
100mA |
|

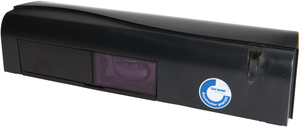

Model |
Presence detector |
|
Number of cores |
8 |
|
Number of poles |
8 |
|
Number of switch outputs |
2 |
|
Operating voltage |
12 - 24V |
|
Optimum mounting height |
3m |
|
Output hold time |
0.3 - 1s |
|
Power consumption |
2.5W |
|
Reverse polarity protection |
no |
|
Setting procedure |
Parameterization |
|
Short-circuit-proof |
no |
|
Suitable for degree of protection (IP) |
IP54 |
|
Switching voltage |
42V |
|
Time of reaction |
200ms |
|
Turn-off delay |
yes |
|
Type of electric connection |
Cable with connector |
|
Type of light |
Infrared light |
|
Type of switch function |
Normally closed contact/normally open contact |
|
Type of switching output |
Relay contact |
|
Voltage type |
AC/DC |
|
Wavelength of the sensor |
875nm |
|
Width sensor |
270mm |
|
With LED indication |
yes |
