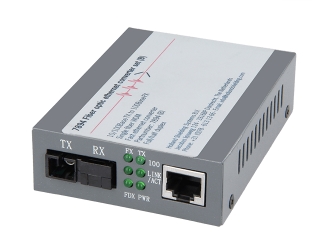

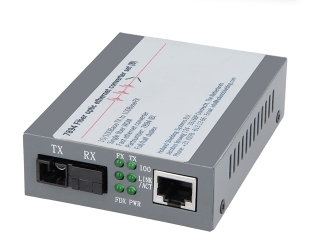

Signal line filters รุ่น 7894 Fiber-optic Ethernet converter set for EMI-shielded rooms and Faraday cages
Specifications
Operating standards: IEEE802.3u, 10/100Base-TX and 100Base-FX
MAC address table: 1K
LED: Power, FX 100, FX Link/Act, TX 100, TX FDX, TX Link/Act.
Power: AC 110V - 220V to DC 5V; DC48V to DC 5V
Ambient temperature: 0 - 50 °C
Storage temperature: -20 - +70 °C
Humidity: 5% - 90%
Features
The transmission of optical signals can be done through a single fiber since this allows for twice as much data transmission compared with a twin fiber type.
Auto negotiation function allows UTP port to auto select 10M or 100M and Full Duplex or Half Duplex.
UTP port supports MDI / MDI-X auto crossover
Supporting flow control
Supporting 1552 Byte packet
Built-in protection against lightning can prevent great damage to the converter caused by the induction of a lightning stroke.
Design of internal or external power supply for selection by users
Connector
UTP: RJ-45 10/100Mbps
Fiber: SC 100Mbps
Cable
UTP: Cat. 5 UTP (max. distance up to 100m)
Fiber (single mode): 8.3/125, 8.7/125, 9/125, 10/125μm (max. distance up to 90km)
